Caractéristiques

Transmission Type: Manual

Condition: New

Emission Standard: EURO 5

Fuel Type: Diesel

Dimensions (L x W x H) (mm): 7090X1930X3230 mm

Gross weight: 5730 kg

Wheelbase: 3360 mm

Emission standard: Euro 5

Max working height: 14 m

Bucket dimension: 1100*700*1150mm

Arm material/thickness: Steel plate HQ60/50mm

Certificate: CCC

Informations de base

Certification: CCC

Conditions de paiement et expédition

Packaging Details: bare, waxed, Ro-Ro, bulk, or specified by the customers

Supply Ability: 30 Unit/Units per Month

Description de produit

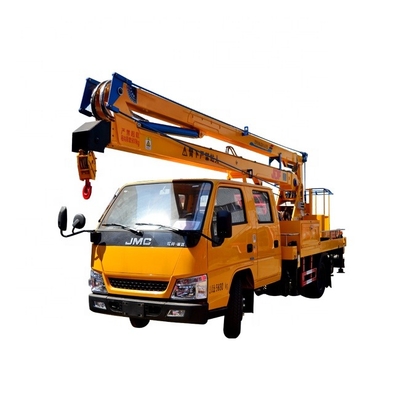

JMC double-row 14m folding arm high-altitude work vehicle main features:

1. Low alloy Q345 profiles are used for the boom and support legs, with no welding seams around, beautiful appearance, large force
and high strength;
2. The h-type support leg has good stability. The support leg can be operated simultaneously or independently.
3. The rotary mechanism is adjustable to facilitate adjustment;
4. The turntable rotates 360° in both direction, and adopts advanced turbo worm type deceleration mechanism (with self-lubricating
and self-locking functions), and the effect can be easily achieved by adjusting bolt position for later maintenance;
5. Integrated electronic control valve block mode is adopted for on-board operation, with beautiful layout, stable operation and
convenient maintenance;
6, get off and get on the vehicle interlock, safe and reliable operation;
7. Realize stepless speed regulation through throttle valve for on-board operation;
8. The hanging basket adopts external tie rod for mechanical leveling, which is more stable and reliable;
9. The turntable and basket are equipped with start and stop switches for convenient operation and fuel saving;

Europ 5 JMC 14m high-altitude vehicle is a best-selling vehicle

Europ 5 JMC 14m high-altitude vehicle, the maximum operating height of 14m, the
maximum operating height of 2m, the maximum operating range of 6.3m, the maximum operating range of 8m, two-way 360° continuous
rotation. Standard configuration: three-section folding arm, maximum lifting mass of 1 ton, with 1 meter telescopic hook, rated
load of 200KG, with cylinder locking function, turntable and blue double operation, blue belt engine start, flaring device,
vehicle operation mode for manual and electric combination.

1. Purpose of aerial vehicle

By folding, luffing and rotating the working arm, operators and tools are sent to the designated high-altitude working position
for high-altitude operation.

2. Use environmental conditions

2) ambient temperature: -5℃ ~ +40℃

3) relative humidity: ≤95% (25℃) 4) maximum daily temperature difference: 15℃

5) sunshine intensity (wind speed 0.5m/s) : 0.1w /cm2 6) maximum wind speed: ≤ 10.7m/s1)

7) seismic capability: ground horizontal acceleration 0.3g; ground vertical acceleration 0.15g; three sine waves lasting at the
same time; safety factor 1.67

Main Technical Data
General	Chassis type	JX1061TSG25
		Dimension	709019303230
		Gross weight	5730 kg
		Wheelbase	3360
		Emission standard	Euro 5
Superstructure Specification
Arm	Max working height	14 m
		Arm Material/thickness	Strengthen Steel Plate HQ60/5mm
		Boom section	Quadrilateral
Operation	Working height at maximum working radium	6.3 m
		Working radium at maximum working height	8 m
		Maximum operating range	10m
		Rotation angle	360° continuous rotation
Landing leg	Material	Q345B / 5 mm
		Leg span	Longitudinal (mm) : 3240, transverse (mm) : 3600
		Hydraulic lock	2 Hydraulic lock
Bucket	Rated load capacity	≤200 Kg
		Dimension	11007001150 mm
		Leveling form	Static hydraulic automatic leveling
		Safety belt	1

Welcome to buy our company's Europ 5 JMC 14m high-altitude work vehicle, stable product performance, energy saving and environmental protection, high efficiency, safety and security.
1. Operating system: the operation mode is the combination of manual and electric; the turntable and basket are operated by
electric double-position; the basket is equipped with engine starting and stopping (safe and convenient to operate and save fuel).
The throttle cable of the engine is operated manually and the supporting leg is operated manually. Each supporting leg can be
adjusted independently and the upper and lower vehicle are interlocked. The operation is safe and reliable.

And boom/table 2: three folding boom, profile Q345B / 4 mm, boom, boom section, quadrilateral, boom rolling Angle, 0 ° to 70 °
(relative to the horizontal plane), two-way 360 ° rotating turntable, adopting the advanced turbine worm type retarding mechanism,
(with self-lubricating and self-locking function) late maintenance can also be easily by adjusting the bolt location easily reach
effect; The rotary mechanism adopts adjustable type, which is convenient for adjustment.

3, boom: 14 meters high altitude car boom lifting the quality of 1000 kg, largest scale length of 1 meter, maximum lifting height
7.4 meters, 5.8 meters, the maximum lifting amplitude cable length 40 meters Φ 8. Lifting mechanism; Single rope tension 800kg,
hook 1T

16 meters high car boom lifting the quality of 1000 kg, largest scale length of 1 meter, maximum lifting height 8.4 meters, 6.8
meters, the maximum lifting amplitude cable length 40 meters Φ 8. Lifting mechanism; Single rope tension 800kg, hook 1T

4. Supporting legs: front and rear h-type four hydraulic supporting legs, profile Q345B/5mm, supporting leg span longitudinal (mm)
: 3240, transverse (mm) : 3180, h-type supporting legs have good stability, supporting legs can be operated simultaneously or
independently, flexible operation, and can adapt to a variety of working conditions; All four legs are equipped with two-way
hydraulic locks, and the rear legs are equipped with two yellow strobe lights.

5, car: high quality carbon steel and profile, shop 3 mm non-slip pattern steel plate, toolbox 1200*400*500; Mold pressing door,
stainless steel door lock, Φ 20 stainless steel pipe fence, cab side step up and down, side, protection is made of high quality
carbon steel after cold bending profile; High strength, hand wash tank

6. Hanging basket: the rated load of the hanging basket is ≤200Kg, the size of the hanging basket is 1080*620*1150, the external
tie rod is mechanically adjusted and the safety belt is one pair.

7. Hydraulic system: hydraulic tank 65L; With liquid level gauge, with pressure gauge; 16MPa, gear pump quantitative pump, flow
rate 25ml/r, integrated solenoid valve group, 12 cylinders; With two-way balance valve or hydraulic lock for locking, to ensure
safety

8. Paint; Well-known brand paint; Smooth color, beautiful lines;

9. Logo and signage: clear, eye-catching and fadeless
